Trailers That Are Ideal for Moving Livestock

Steel Stock Goosenecks

Standard Features

• 16′, 20′, 24′, 28′, 32′, 36′, and 40′ Lengths
• 5′, 6′, 6’6″, 6’8″, 7′, and 7’6″ Widths
• 6’6″ Bow Height Bartop
• 3-Plank Spaced Sides
• 3/16′ or 7-Gauge Steel Body and Brush Fender
• Schedule 40 1¼” Bow Pipes on 4′ Centers
• 4″ Channel Cross Members on 4′ Centers
• 2″ x 2″ x 3/16″ Angle Iron Floor Runners Full-Length of Trailer
• Double T-Braces
• 3/16″ Formed Neck Gusset
• 8″ Channel Iron Neck Up to 28′ and 10″ Channel Iron Neck on 32′ and Up

• Adjustable 2–5/16″ (25K) Ball Coupler (Hitch)
• Schedule 40 Heavy-Duty Vertical Pipe Gates With 1-Piece Outer Bow Frame
• Sandblasted, Primed With Rust Inhibitive Primer, and Painted With 2 Coats of Paint
• 2″ x 6″ and/or 2″ x 8″ Treated Pine Floor
• Split Tailgate
• 1 Crossgate (16′ and 20′ Lengths)
• 2 Crossgates (24′, 28′ and 32′ Lengths)
• 3 Crossgates (36′ and 40′ Lengths)
• 1 Spring-Loaded Drop Leg Jack
• Electric Brakes (All Axles)
• Cambered Spring Axles

• 6K, 7K, 7.2K, 8K, and 10K Axles Available
• 8-Hole 16″ Wheels
• 235 85 R16 Radial Tires
• Center Caps
• Spare Tire and Rack
• Safety Chains
• Lights Meet U.S. DOT-Required Specifications
• Conspicuity (Reflective) Tape
• 4″ x 2″ Rectangle Tube Bumper
• 3-Light LED Bars on Front and Rear
• 5-Year Limited Warranty

Optional Features

• Roper Special
• Special Paint Colors
• Epoxy Primer
• 7′ and 7’6″ Bow Heights
• Extra 2″ x 2″ x 3/16″ Angle Iron Floor Runners
• 18oz. Vinyl-Coated Canvas Top and Front (Different Colors Available)
• 18oz. Vinyl-Coated Canvas Feeder (Pipe Nose) (Different Colors Available)
• 18oz. Vinyl-Coated Canvas Side Curtains (Different Colors Available)
• Metal Top and Front
• Metal Front From Neck Down
• Open Vertical Pipe Front From Neck Down
• 4′ or 6′ Enclosed Straight, Sloped, or Tapered Nose
• 4′ or 6′ Pipe Nose
• Outside Nose Door
• 4-, 5-, 6-, or 7-Plank Sides
• 4, 5, 6, or 7 1” or 3″ Rectangular Tubing Sides
• Pipe Sides
• Solid Smooth Sides
• Punch Panel Sides
• Upper T-Braces
• Extra Crossgate
• Removable Crossgate
• Split Crossgate
• Side/Swing Crossgate
• Solid Smooth Crossgate

• Bull Gates With Double Bows
• Double Bows
• Slide/Swing Tailgate
• Swing Tailgate
• Removable Racks
• Mini Ramps
• Full-Width Rear Horse Loading Ramp
  (Spring-Assisted)
• Half or Full Escape Door
• Cleated or Flat Rubber Floorboards
• Double-Deck Floor
• Double-Deck Rails and Gates
• Electric Over Hydraulic Brakes
• Rubber Torsion Axles
• 10K G.D. Rubber Torsion Axles 12K and 15K Axles on Some Trailers
• LR G (14 Ply) Radial Tires
• Extra Spare Tire and Rack
• Rubber Dock Bumper
• Underbody Toolbox
• 2 Single-Speed Drop Leg Jacks
• 2 Drops Leg Jacks With 2-Speed Gearbox
• Electric Over Hydraulic Jack
• Adjustable Eyebolt Hitch
• LED Lights
• Top Light Bar With Backup Lights
• Dome Lights

• Extra Clearance Lights
• Spotlights
• Porch Lights
• Rubber Floor Mats
• Rubber Wall Mats
• Any-Length Dressing Room With Door, Straight, or Slant
• Rear Tack Room
• Self-Contained Removable Rear Tack Room
• Rear Van Doors
• 8′ Hayrack With Ladder
• Bus Windows
• Roof Vents
• Butterfly Vents
• Horse Dividers
• Pads for Horse Dividers
• Saddle Racks
• Tack Hooks
• Tie Hooks
• Brush Trays
• Blanket Bar
• Clothes Rack
• Colored Vinyl Trim
• Aluminum Gravel Guard
• 5″ x 5″ Angle Cap at Axles or Full Trailer Length
• Extra 4″ Channel Crossmembers

View Related PDF

Locate A Dealer

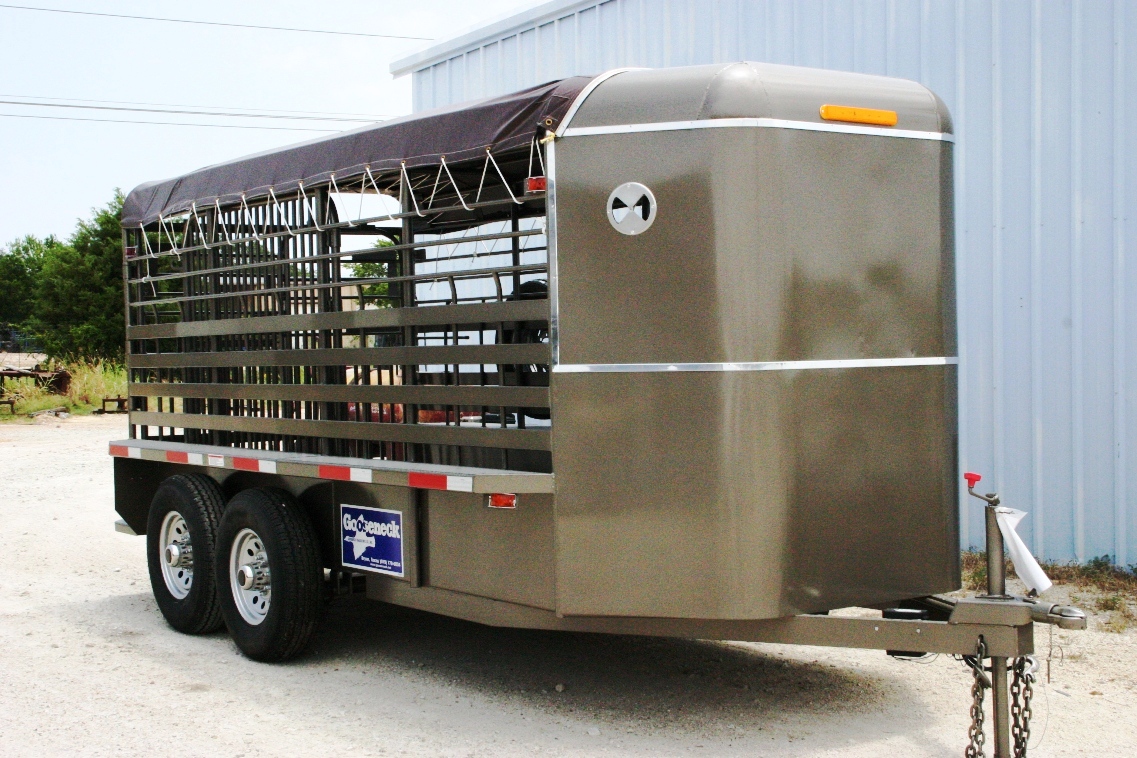

Steel Stock Bumper Pull

Standard Features

• 16′-Long, 6′-Wide, 6’6″-High
• Wood Floor
• 2 6K Spring Axles
• Electric Brakes on Both Axles
• 8-Hole 16″ Wheels
• 235 85 R16 Radial Tires

• Full Metal Front
• 2′ Front Section
• 1 Crossgate
• Split Tailgate
• 2 5/16″ V-Coupler
• Bartop

• Spare Tire Rack and Wheel
• 3-Plank Sides
• Brush Fenders
• Sandblasted, Primed With Rust Inhibitive Primer, and Painted With 2 Coats of Paint (Red or Black)
• 5-Year Limited Warranty

Optional Features

• 14′ Trailer Length
• 5′ Trailer Width
• 4-Plank Sides
• 5-Plank Sides
• 6-Plank Sides
• 7-Plank Sides

• Pipe Sides
• 4 1″ x 3″ Tube Sides
• 5 1″ x 3″ Tube Sides
• 6 1″ x 3″ Tube Sides
• 7 1″ x 3″ Tube Sides

• Different Color
• Canvas Top
• Metal Top
• Slide Swing Tailgate
• Full or Half Escape Door

View Related PDF

Locate A Dealer

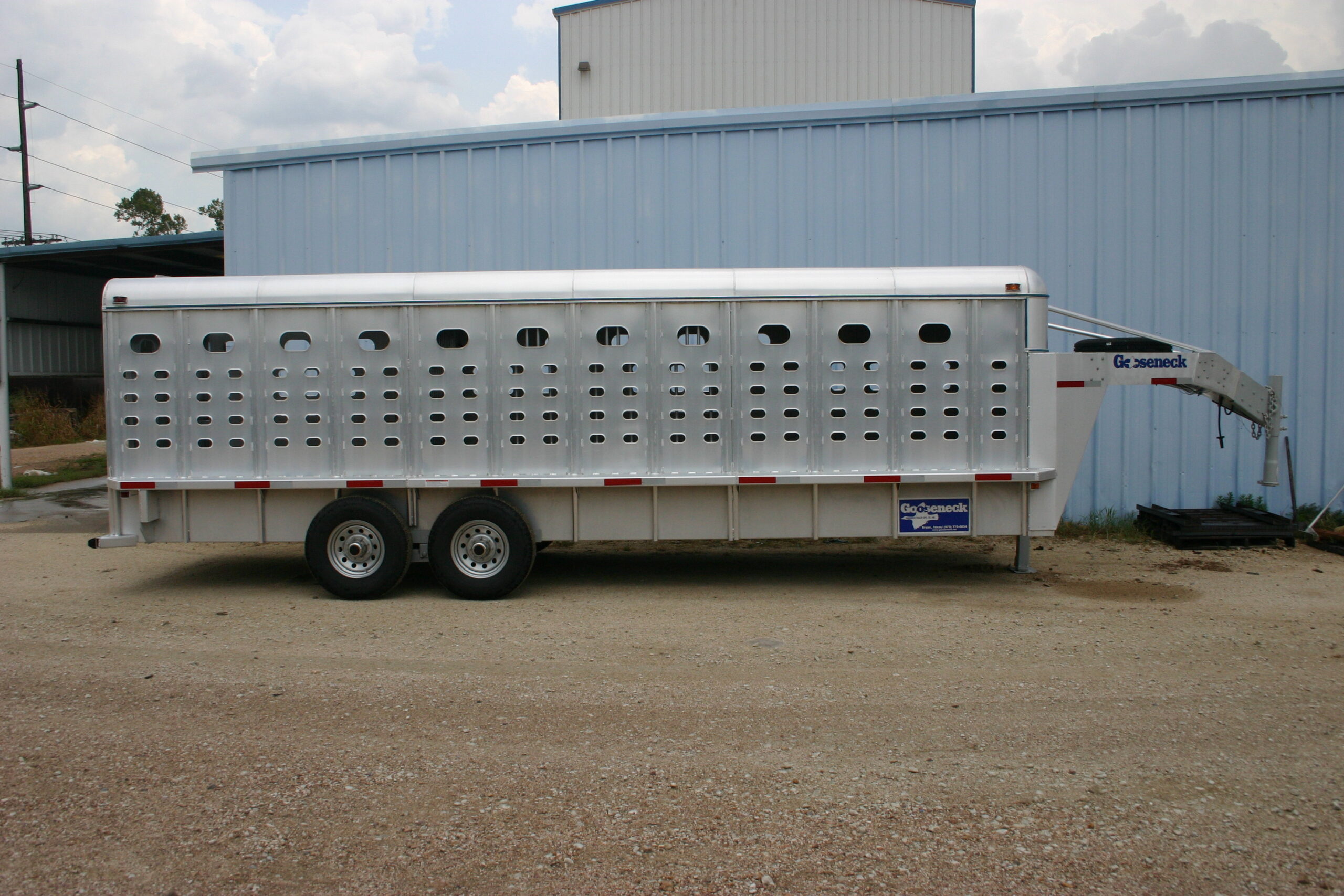

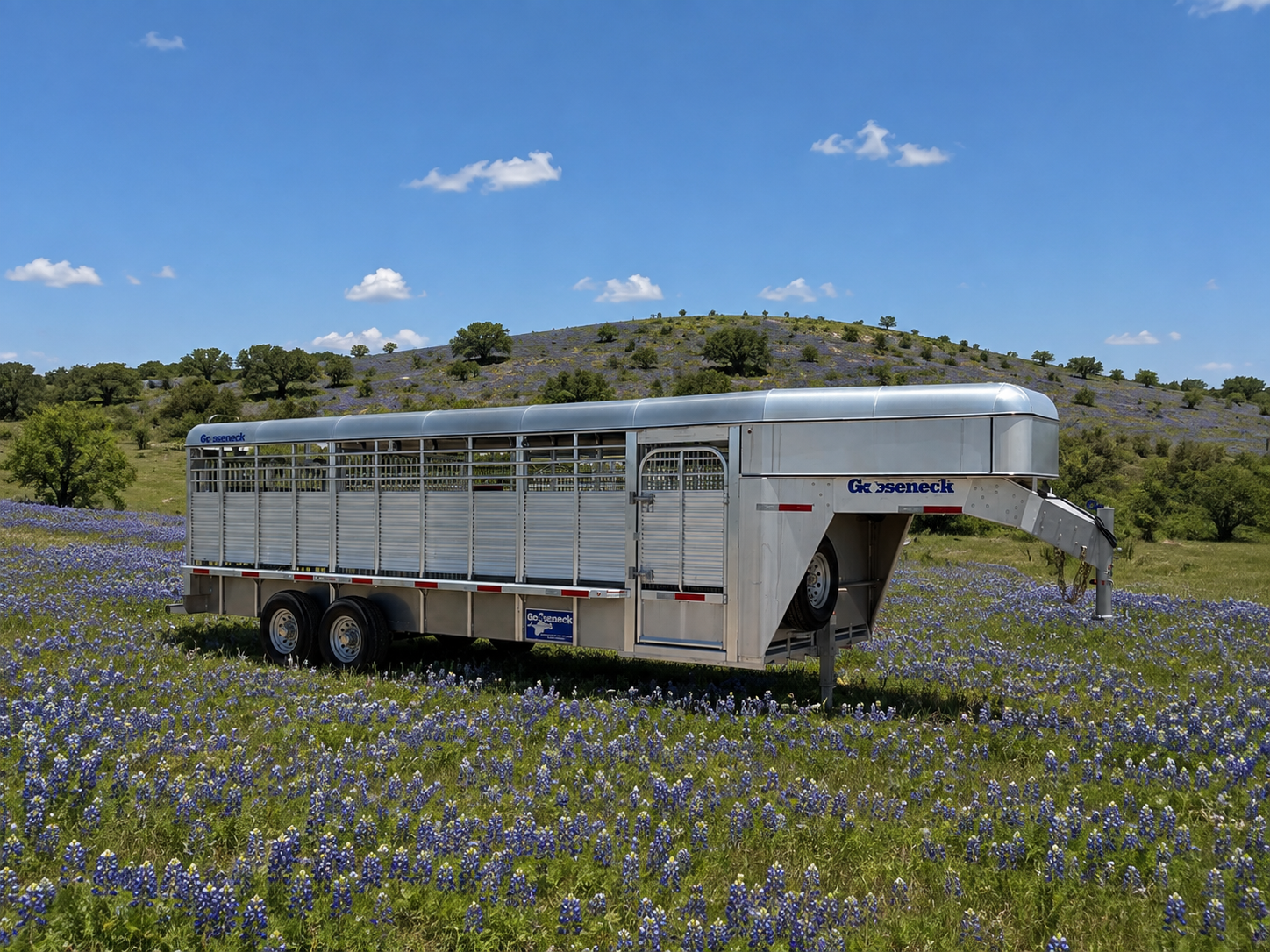

Aluminum Stock Trailer

Standard Features

• 16′, 20′, 24′, 28′, and 32′ Lengths
• 6’8″ Width Up to 32′
• 7’6″ Width Up to 28′
• 6’6″ Bow Height
• Bartop on 6’8″
• Aluminum Top on 7’6”
• Open Vertical ¾” Pipe Front From Neck Down
• 3-Plank Spaced Sides
• 3/16″ Aluminum Brush Fender Material (16′, 20′, and 24′ Lengths)
• 1/4” Aluminum Brush Fender Material (28′ and 32′ Lengths)
• Schedule 40 1¼” Bow Pipes on 2′ Centers
• Double Bows at Crossgates and Tailgates
• 6″ Channel Crossmembers on 2′ Centers

• 8″ Channel Uprights
• 2”x 2” x 3/16″ Angle Floor Runners Full Length of Trailer
• Boxed Channels Over Axles
• ¼” Formed Neck Gussets
• 8″ Channel Neck (16′ and 20′ Lengths)
• 10″ Channel Neck (24′, 28′ and 32′ Lengths)
• Slipper Spring Suspension
• 235 85 R16 Radial Tire
• Spare Tire and Rack
• 2–5/16″ Adjustable Hitch (25K)
• 2”x 6″ and 2”x 8″ Treated Lumber Floor
• Floorboards Secured With ½” Spacing Between Boards and With Side Runners
• Split Tailgate

• 1 Crossgate (16′ and 20′ Lengths)
• 2 Crossgates (24′, 28′, and 32′ Lengths)
• Stainless Steel Pins
• Rubber Dock Bumper
• 1 Spring-Loaded Drop Leg Jack
• Electric Brakes (All Axles)
• Safety Chains
• 2–7K Cambered Axles With ¼” Wall Thickness (16′, 20′, and 24′ Lengths)
• 3–7K Cambered Axles With ¼” Wall Thickness (28′ and 32′ Lengths)
• Stainless Steel Center Caps
• Pipe Tailgates and Crossgates
• 5-Year Limited Warranty

Optional Features

• 6′ Width
• 7′ and 7’6″ Bow Height
• 18 oz. Vinyl-Coated Canvas Top and Front (Different Colors Available)
• 18 oz. Vinyl-Coated Canvas Side Curtains (Different Colors Available)
• 1/4″ Aluminum Brush Fender Material (16′, 20′, and 24′ Lengths)
• Aluminum Top on 6’8″ Width
• Aluminum Front on 6’8″ Width
• 4′ Enclosed Nose
• 6′ Enclosed Nose
• Straight Nose
• Sloped Nose
• Tapered Nose
• Sloped and Taped Nose (6′ Only)
• Outside Nose Door
• 4-,5-, 6-, or 7-Plank Sides
• 4,5, 6, or 7 1″ x 3″ Tube Sides
• Pipe Sides
• Solid Smooth Sides
• Punch Panel Sides
• Extra Crossgate
• Removable Crossgate
• Split Crossgate

• Slide/Swing Crossgate
• Solid Smooth Crossgate
• Slide/Swing Tailgate
• Full Escape Door
• Half Escape Door
• Horse Loading Ramp
• Rubber Torsion Axles
• 8K Suspension
• 7.2K and 8K Axles
• 235 85 R16 LR G (14 Ply) Tires
• 7-Way RV Plug
• LED Lights
• Porch Lights
• Dome Lights
• Rubber-Mounted Lights
• Top Light Bar With Backup Lights
• Extra Clearance Lights
• Spotlights
• Electric/Hydraulic Brakes
• Extra Spare Tire and Rack
• Underbody Toolbox
• 2 Single-Speed Drop Leg Jacks
• 2 Drop Leg Jacks With 2-Speed Gearbox

• Electric/Hydraulic Jack With Battery Pack
• Adjustable Eyebolt Hitch
• Rubber Floor Mats
• Rubber Wall Mats
• 4′ Dressing Room With Door, Straight, or Slant (Large Sizes Available)
• Self-Contained Removable Rear Tack Room
• Rear Tack Room
• Rear Van Doors
• 8′ Hay Rack With Ladder
• Bus Windows
• Roof Vents
• Butterfly Vents
• Padded Horse Dividers
• Saddle Racks
• Tack Hooks (5)
• Tie Hooks
• Brush Trays (3)
• Blanket Bar
• Clothes Rack
• Colored Vinyl Trim
• Cleated Rubber Floor
• Non-Cleated Rubber Floor

View Related PDF

Locate A Dealer

Aluminum Stock Bumper Pull

Standard Features

• 16′-Long, 6′-Wide, 6’2″ Tall
• Wood Floor
• 2–6K Axles
• Electric Brakes on Both Axles
• 8-Hole 16″ Wheels
• 235 85 R16 Radial Tires

• Full Aluminum Font
• 2′ Front Section
• 1 Crossgate
• Split Tailgate
• 2 5/16″ V-Coupler
• Bartop

• Spare Tire, Rack, and Wheel
• 3-Plank Sides
• Brush Fenders
• Rubber Dock Bumper
• 5-Year Limited Warranty

Optional Features

• 14′ Trailer Length
• 5′ Trailer Width
• 4-Plank Sides
• 5-Plank Sides
• 6-Plank Sides

• 7-Plank Sides
• Pipe Sides
• 4 1″ x 3″ Tube Sides
• 5 1″ x 3″ Tube Sides
• 6 1″ x 3″ Tube Sides

• 7 1″ x 3″ Tube Sides
• Canvas Top
• Aluminum Top
• Slide Swing Tailgate
• Full or Half Escape Door

View Related PDF

Locate A Dealer
